FritsJurgens Pivot Door Hinges

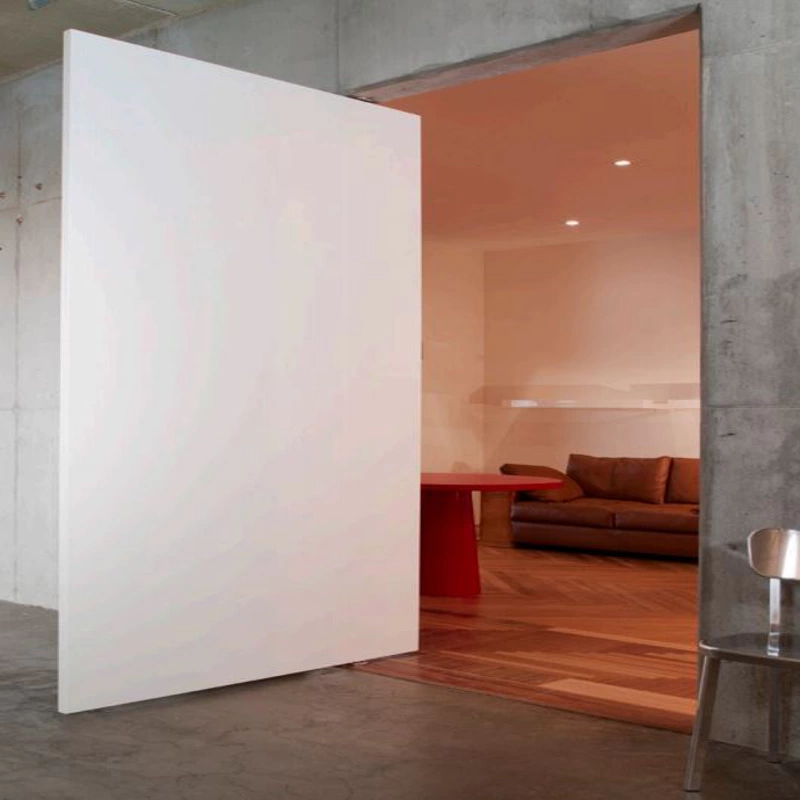

FritsJurgens System One: This maintenance-free center-hung pivot hinge System One can handle doors up to 1,100 lbs. Very wide and very tall doors are no problem. For example, 26ft. high doors have been installed as well as 20ft wide doors.

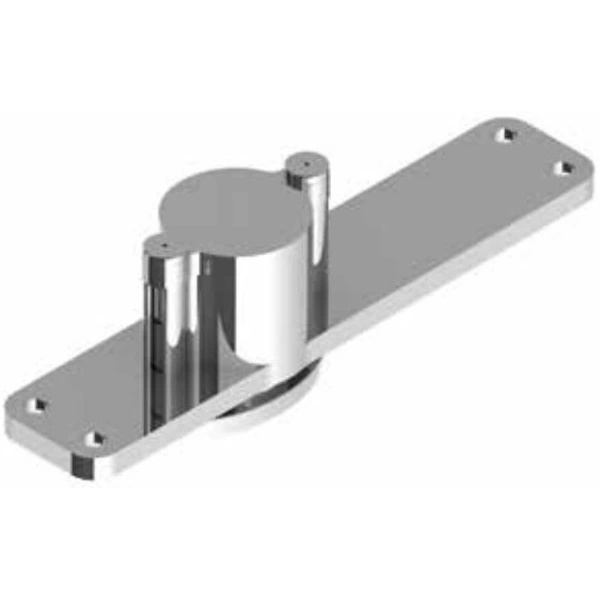

FritsJurgens System 3: FritsJurgens System 3 Pivot is often specified in space partitioning applications because of its unique "turnstile" function. Turning a full 360° with stops at every 90°, this pivot closes from each 45° to the nearest 90°. So, from 46° it will open up and hold at 90°. From 44° it will close to 0°. Common uses include an entire long wall of a conference room segmented to open all out to a break out space.

FritsJurgens System M+: The FritsJurgens System M+ is the next generation of revolutionary pivot closers from the Dutch manufacturer, FritsJurgens. For these M32+ models, the Plus means it provides increased control for the movement of your pivot door (over the standard System M). This is especially true in regard to the LATCHING SPEED CONTROL.
